DirectGPU 1.0.20 for NeoForge 1.21.1 is built on CC:Tweaked 1.117.1.

DirectGPU displays work on Create entities, Create Aeronautics contraptions, and Elevator entities. Sable/ Create Aeronautics support means DirectGPU displays work on them.

Term redirect style support is available through gpu.run / termRender.

The controller API has been removed from DirectGPU since it has been made into its own mod: CC-Gamepads. https://github.com/tiktop101/CC-Gamepads

CC-Gamepads uses cc_event events and supports up to 4 bound gamepads.

There will probably be bugs I have not noticed or found yet, so let me know in my Discord server or as a GitHub issue. Suggestions can also go in either the Discord server or as a GitHub issue.

createDisplay("gui", pixelWidth, pixelHeight) creates a GUI on the computer used and on the front texture of the computer createDisplay("gui", pixelWidth, pixelHeight, [resolutionMultiplier]) same as "creates a GUI on the computer used and on the front texture of the computer" but with the optional arg to use the resolution multiplier.

Manual display creation also supports relative positions from the DirectGPU block.

createDisplay(x, y, z, facing, width, height, true) creates a display at a relative block offset from the DirectGPU block. createDisplay(x, y, z, facing, width, height, scale, true) does the same but with the optional scale arg.

Example: gpu.createDisplay(1, 0, 0, "north", 2, 1, true) gpu.createDisplay(1, 0, 0, "north", 2, 1, 1.0, true)

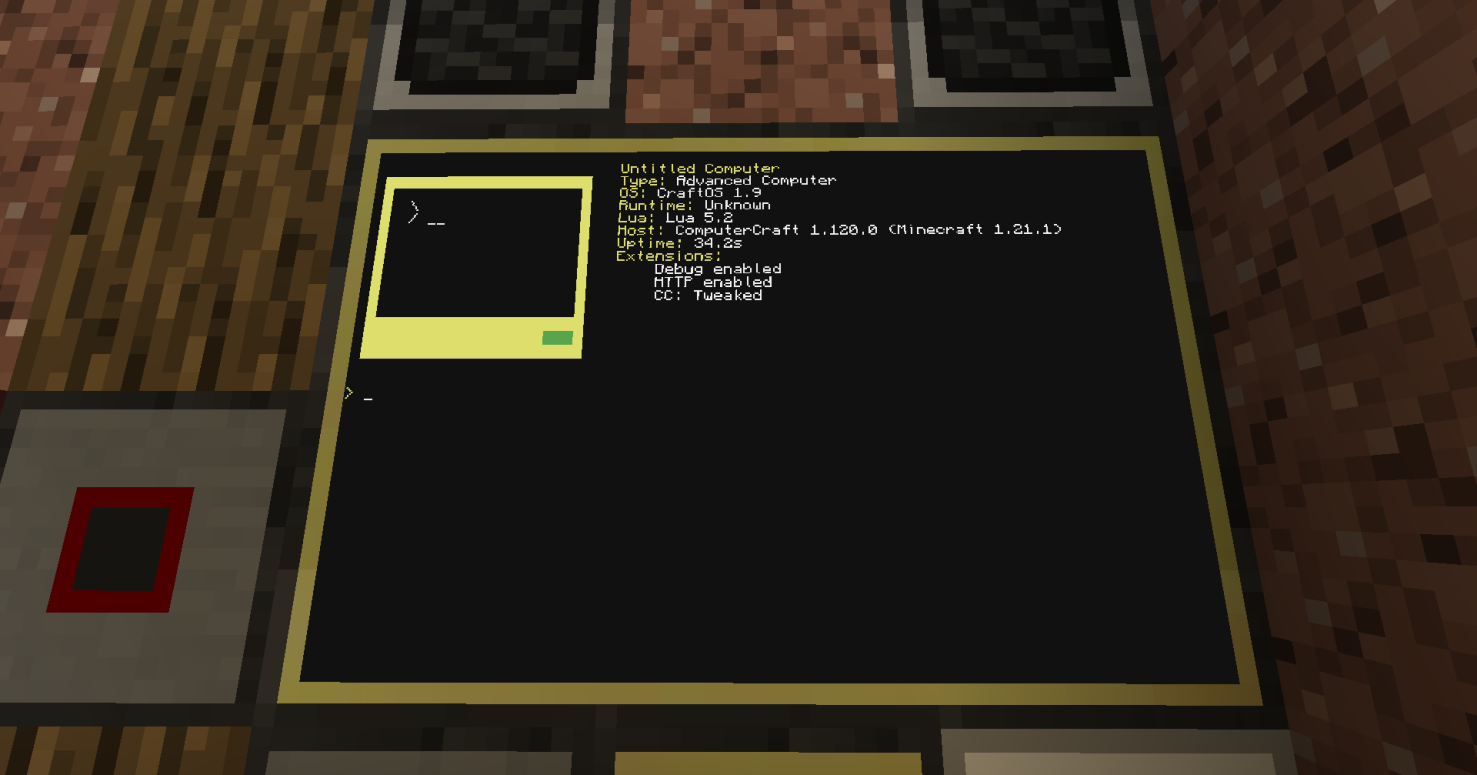

Example Term Redirect* script.

local gpu = peripheral.wrap("directgpu_1") or peripheral.find("directgpu") local id = gpu.autoDetectAndCreateDisplay(1)

gpu.run(id, "clear") gpu.run(id, "multishell")

Monitor anchor example

local gpu = peripheral.wrap("directgpu_1") or peripheral.find("directgpu")

local x, y, z = gpu.autoDetectMonitor("top") local displayId = gpu.createDisplayAt(x, y, z)

gpu.setOpacity(displayId, 100) gpu.setBackgroundOpacity(displayId, 0)

CC:Advanced Math Quaternion model rotation example

local gpu = peripheral.wrap("directgpu_1") or peripheral.find("directgpu") local displayId = gpu.autoDetectAndCreateDisplay(1)

local modelData = [[ v -0.5 -0.5 0 v 0.5 -0.5 0 v 0 0.5 0 f 1 2 3 ]]

local modelId = gpu.load3DModel(modelData)

gpu.setupCamera(displayId, 50, 0.05, 100) gpu.setCameraPosition(displayId, 0, 0, -4) gpu.lookAt(displayId, 0, 0, 0)

local angle = math.rad(90) local half = angle / 2

local qx = 0 local qy = math.sin(half) local qz = 0 local qw = math.cos(half)

gpu.clear(displayId, 0, 0, 0) gpu.clearZBuffer(displayId) gpu.draw3DModel(displayId, modelId, 0, 0, 0, 0, 0, 0, 1, 255, 255, 255, qx, qy, qz, qw)

if gpu.updateDisplay then gpu.updateDisplay(displayId) end

Textured quaternion model example

local gpu = peripheral.wrap("directgpu_1") or peripheral.find("directgpu") local displayId = gpu.autoDetectAndCreateDisplay(1)

local modelData = [[ v -0.5 -0.5 0 v 0.5 -0.5 0 v 0 0.5 0 vt 0 1 vt 1 1 vt 0.5 0 f 1/1 2/2 3/3 ]]

local textureData = "base64_png_here"

local modelId = gpu.load3DModel(modelData) local textureId = gpu.loadTexture(textureData)

gpu.setupCamera(displayId, 50, 0.05, 100) gpu.setCameraPosition(displayId, 0, 0, -4) gpu.lookAt(displayId, 0, 0, 0)

local angle = os.clock() local half = angle / 2

local qx = 0 local qy = math.sin(half) local qz = 0 local qw = math.cos(half)

gpu.clear(displayId, 0, 0, 0) gpu.clearZBuffer(displayId) gpu.draw3DModelTextured(displayId, modelId, textureId, 0, 0, 0, 0, 0, 0, 1, 255, 255, 255, qx, qy, qz, qw)

if gpu.updateDisplay then gpu.updateDisplay(displayId) end

DirectGPU Peripheral (gpu)

autoDetectAndCreateDisplay([resolutionMultiplier]) -> number autoDetectAndCreateDisplays([maxCount, resolutionMultiplier]) -> table autoDetectMonitor([nameOrSide]) -> x, y, z autoDetectMonitors([maxCount]) -> table createDisplay(x, y, z, facing, width, height, [relative]) -> number createDisplay(x, y, z, facing, width, height, [scale, relative]) -> number createDisplayAt(x, y, z, [relative]) -> number createDisplayAt(x, y, z, facing, width, height, [scale, relative]) -> number createDisplayWithResolution(x, y, z, facing, width, height, [resolutionMultiplier, relative]) -> number mirrorDisplay(sourceDisplayId, targetDisplayIds) -> table getDisplayPosition(displayId) -> table setDisplayPosition(displayId, x, y, z) getRotation(displayId) -> table setRotation(displayId, pitch, yaw) moveDisplay(displayId, targetX, targetY, targetZ, [speed, ...]) stopDisplayMovement(displayId) enableDeltaMode(displayId) getDisplayFrameJpeg(displayId, [quality]) -> string setOpacity(displayId, opacity) setBackgroundOpacity(displayId, opacity)

loadPNGFullscreen(displayId, base64PngData) loadPNGRegion(displayId, pngBinaryData, x, y, w, h) loadPNGRegionBytes(displayId, base64PngData, x, y, w, h) decodePNG(base64PngData) -> table decodeAndScalePNG(base64PngData, targetWidth, targetHeight) -> table getPNGDimensions(base64PngData) -> table

loadGIFFullscreen(displayId, gifData) loadGIFRegion(displayId, gifBinaryData, x, y, w, h) loadGIFRegionBytes(displayId, base64GifData, x, y, w, h) loadGIFFrame(displayId, gifData, frameIndex, x, y, w, h) stopGIF(displayId) decodeGIF(base64GifData) -> table decodeAndScaleGIF(base64GifData, targetWidth, targetHeight) -> table getGIFDimensions(base64GifData) -> table getGIFFrameInfo(base64GifData) -> table

loadImageFullscreen(displayId, base64ImageData) loadImageRegionBytes(displayId, base64ImageData, x, y, w, h) decodeImage(base64ImageData) -> table decodeAndScaleImage(base64ImageData, targetWidth, targetHeight) -> table getImageDimensions(base64ImageData) -> table detectImageFormat(base64ImageData) -> string

load3DModel(objData) -> number unload3DModel(modelId) draw3DModel(displayId, modelId, x, y, z, rotX, rotY, rotZ, scale, r, g, b, [qx, qy, qz, qw]) draw3DModel(displayId, modelId, x, y, z, rotX, rotY, rotZ, scale, r, g, b, [quaternion]) loadTexture(base64ImageData) -> number unloadTexture(textureId) draw3DModelTextured(displayId, modelId, textureId, x, y, z, rotX, rotY, rotZ, scale, r, g, b, [qx, qy, qz, qw]) draw3DModelTextured(displayId, modelId, textureId, x, y, z, rotX, rotY, rotZ, scale, r, g, b, [quaternion])

termRender(displayId, lines, ...) -> MethodResult run(displayId, program, ...) -> MethodResult

3D model quaternion args

draw3DModel still supports rotX, rotY, rotZ.

Quaternion rotation can be passed using qx, qy, qz, qw after the color args.

draw3DModel(displayId, modelId, x, y, z, 0, 0, 0, scale, r, g, b, qx, qy, qz, qw)

draw3DModel can also accept a quaternion object/table as the final arg.

draw3DModel(displayId, modelId, x, y, z, 0, 0, 0, scale, r, g, b, pose.orientation)

draw3DModelTextured supports the same optional quaternion args.

draw3DModelTextured(displayId, modelId, textureId, x, y, z, 0, 0, 0, scale, r, g, b, qx, qy, qz, qw)

draw3DModelTextured(displayId, modelId, textureId, x, y, z, 0, 0, 0, scale, r, g, b, pose.orientation)

Opacity

setOpacity(displayId, opacity) changes anything drawn to the display. setBackgroundOpacity(displayId, opacity) only changes the display background.

opacity is 0-100.

0 = invisible / fully transparent 100 = fully visible / fully opaque

"also now if directgpu and cc:gamepads is installed it makes one single tab instead of 2 separate tabs."

New features in this release include full support for GIFs and transparent PNGs along with the addition of double buffering to prevent program flickering. A moveDisplay function has been added to allow for manual repositioning of displays. This update also introduces the map reader peripheral block for viewing Minecraft maps, Players can also now interact with inventory and Minecraft GUIs while looking at a DirectGPU display.

Technical fixes ensure that displays are cleared when a computer shuts down or a GPU block is broken. Display IDs now restart from zero and are tied to the specific GPU block that created them, meaning only that block can clear them. The 3D renderer and setupCamera functions have been fully fixed, and display rotation for pitch and yaw is now smooth.

Stability and compatibility improvements include full support for dedicated servers and Valkyrien Skies 2, specifically allowing autoDetectMonitor to work on ships. The right-click interaction on the GPU block was removed to stop reported crashes, and JPEGs were updated to properly account for blockUUIDs.

REMAKE, since first 1.0.18 fcked packets up with display.

Changelog, AutoDetectMonitor fully working, as far as i know since im on linux so lmk if it works for u in my discord server.

Controller Scanning every 5 seconds ish since it only did it once when you launched minecraft.

added a config .toml to either enable or disable logging, disabled by default.

added metaballs sorta function cuz it looks cool on displays as a sorta screensaver thing.

optimized JPEG for streaming and watching with other people, managed to optimize JPEG packets so it dont do as many, think i was able to fix Display not clearing for windows but dk if it didnt work make a issue abt it.

Added Player UUID's to controller input so you can have multiplayer support for controllers and etc, shouldve added it when i first added Controller Support but oh well.

Fixed Renderer so displays dont get unrendered in any sort of menu or gui.

Added drawPolylines and drawPolygon function

Added Controller Support! Fixed fillRect.
